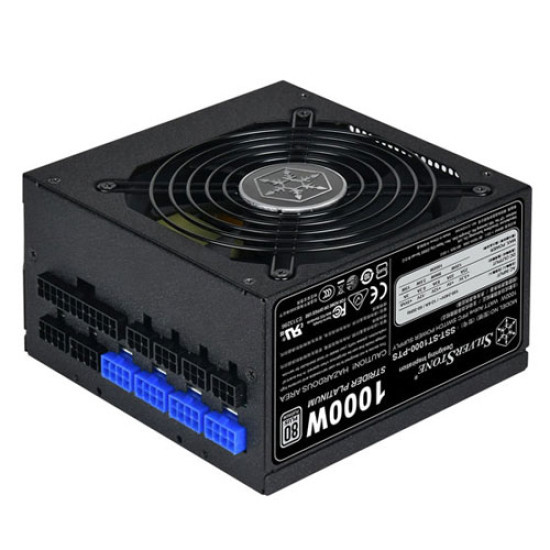

Silverstone Strider Platinum Series 1000W Fully Modular Power Supply (SST-ST1000-PTS)

Silverstone Strider Platinum Series 1000W Fully Modular Power Supply (SST-ST1000-PTS)

Compact design with a depth of 140mm for easy integration
High efficiency with 80 PLUS Platinum certification
100% modular cables
24/7 continuous power output with 40℃ operating temperature
Class-leading single +12V rail
Strict ±3% voltage regulation and low ripple & noise

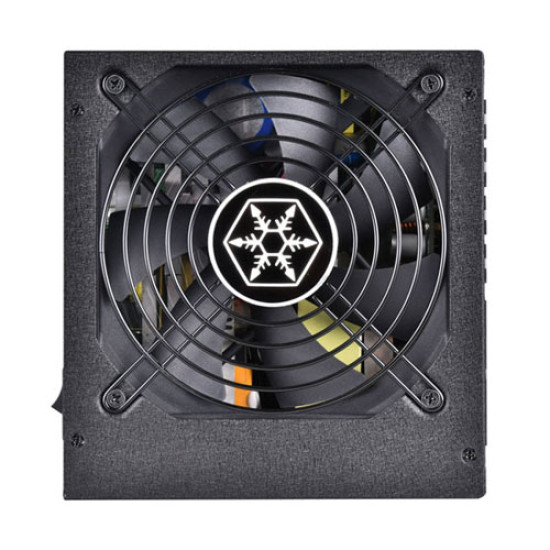

Built-in silent & durable HYB fan
FF122 magnetized fan filter included

Specifications

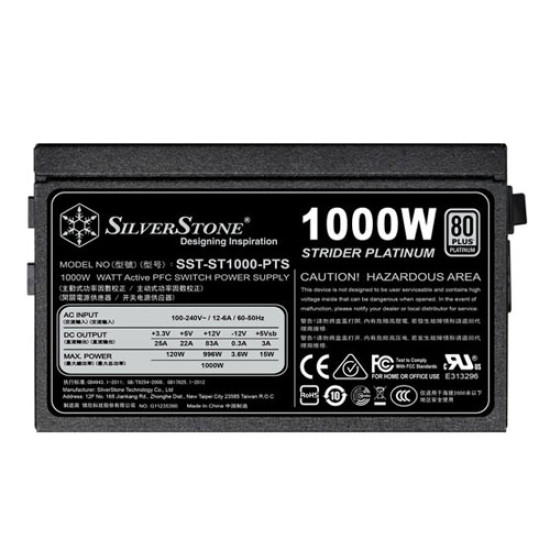

Model No : SST-ST1000-PTS
Max. DC Output : 1000W
Power density : 554W per liter
Color : Black（Lead-Free Paint）
Combined +3.3V & +5V : 120W
Combined +12V : 996W
Input Voltage : 90V~264V
Input Frequency Range : 47Hz~63Hz
PFC : Active PFC（PF>0.9 at full load）
Efficiency : 89%~92% at 20%~100% loading
MTBF : 100,000 hours
Operating temperature : 0°C ~ 40°C Cooling
System : Single 120mm HYB fan
Form factor : ATX
Noise Level : 18 dBA minimum
Dimension : 150 mm (W) x 86 mm (H) x 140 mm (D) / 5.91" (W) x 3.39" (H) x 5.51" (D) Weight : 1.98kg
Certification : 80 PLUS Platinum

Protection
Over power protection
Over current protection
Over voltage protection
Over Temperature protection
Under voltage protection Short circuit protection

Connectors
1 x 24 / 20-Pin motherboard connector（”600mm”）
1 x 8 / 4-Pin EPS / ATX 12V connector（”550mm”）
1 x 8 / 4-Pin EPS / ATX 12V connector（”750mm”）
8 x 8 / 6-Pin PCIE connector（”550mm/150mm” X4）
8 x SATA connector（"600mm /150mm / 150mm / 150mm" X2）
6 x 4-Pin Peripheral connector（”600mm / 150mm / 150mm” X2）
2 x 4-Pin Floppy connector（”150mm” X2）
